优点:
Functions under high pressure up to 420 bar.
High precision.
Very rigid spheroidal graphite iron housing.
Compact size, light weight.
Low friction and minimal loss of pressure.
Stabilization zones unnecessary.
Universally applicable.

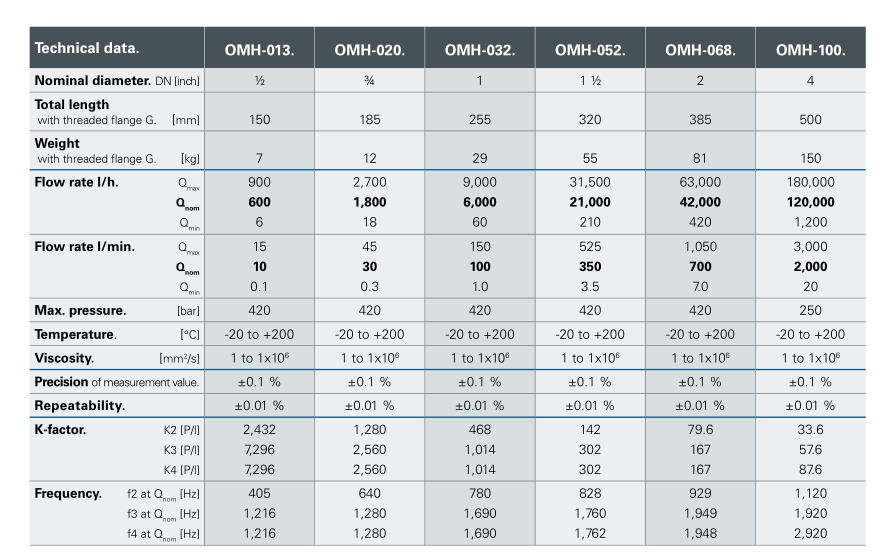

技术参数:
Media: Chemically neutral, lubricating, clean, non-abrasive.
Flow direction detection: Extended sensor range optional.
Temperature measurement: Additional sensor optional.
Signal: PNP, Namur and Push-pull.
Signal detection: Via the pole wheel.
Process fittings: DIN, thread.
材质:
Housing: Spheroidal graphite iron.
Screws: Nitrided steel.
Bearings: Steel bearings.
Sealing: FKM, other seal materials upon request.
