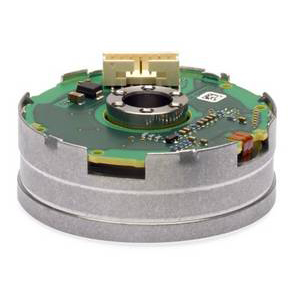

海德汉角度编码器模块MRP2000系列
Measuring standard：DIADUR circular scale
Signal periods：2048
System accuracy*：±7”
Position error per signal period：±1.5”
Shaft：Hollow through shaft D = 10 mm
Max. permissible axial load3)：50 N (load at center)
Max. permissible radial load3)：45 N
Max. permissible tilting moment3)：0.8 Nm
Resistance to tilt：2.16 Nm/mrad (calculated values)
Mech. permissible speed：2000 rpm
Moment of friction≤ 0.020 Nm
Starting torque≤ 0.010 Nm
Max. transferable shaft torque3)：0.3 Nm
Moment of inertia of rotor：3.5 · 10-6 kgm2
Radial guideway accuracy：Measured at distance h = 52 mm from the ball race: ≤ 0.60 µm
Non-reproducible radial guideway accuracy：Measured at distance h = 52 mm from the ball race: ≤ 0.70 µm
Axial guideway accuracy≤ ±0.3 µm
Axial runout of the surface≤ 8 µm
Wobble of the axis：2.5”
